Hobby Master YF-4E Phantom II, AIR Force Test Center, USAF '85 (1:72)

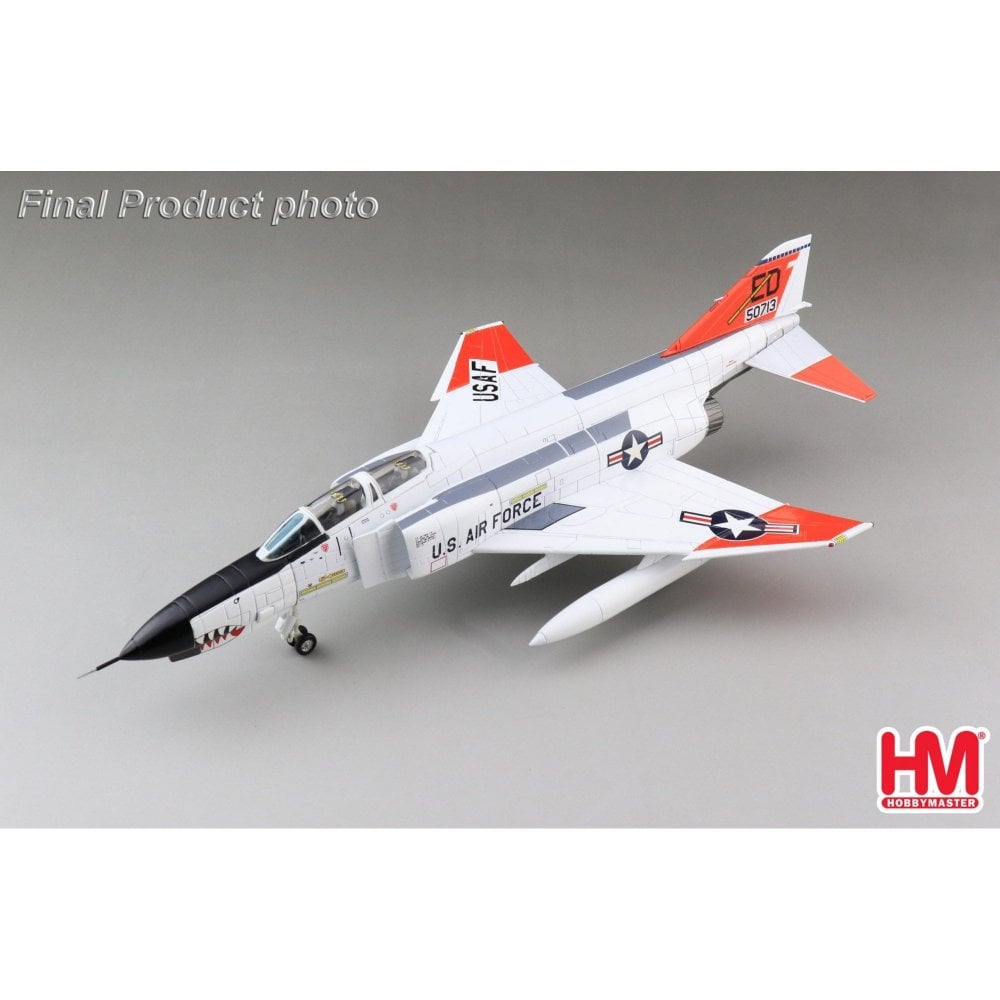

YF-4E Phantom II, AIR Force Test Center, USAF '85

Includes:

- Extensively detailed diecast model

- Cockpit interior detail

- Optional undercarriage (up or down postions)

- Armaments and fuel tanks

- Display stand

- 1:72 Scale

Aircraft History:

The F-4E variant was an improved version of the C/D with an elongated nose and compact radar. These two things made it possible to install a 20mm M61A1 6 barrel 640 round Vulcan gun pod in the nose. The F-4E was the most produced variant with 1387 aircraft being made over its 12 year production period. The “E” also equipped more air forces than any other variant of the Phantom II.

USAF 65-0713 c/n 1761 is noted for a few reasons; it was produced as an F-4D, modified as the prototype for the F-4E armed with an M-61 rotary cannon. It was decided missiles were adequate and cannons weren’t added to production models. Brigadier General Charles “Chuck” Yeager took his last flight as an active duty USAF pilot in this aircraft. 65-0713 also was the test aircraft for the F-4G Wild Weasel and as well as other test beds throughout the 1970s and 80s. This aircraft is on display at AFFTC Museum, Edwards Air Force Base.

Specifications McDonnell Douglas F-4E Phantom II

Engines – (2) General Electric J79-GE-17 turbojets

Thrust – 11,870 lb. st dry, 17,900 lb. st with afterburners

Fuel Maximum internal fuel - fuselage tanks 1,364 US gallons (up to block 40) and 1,225 US gallons (from block 41 on).

Additional - 630 gallons of fuel in internal wing tanks.

External fuel load - 600 US gallons centerline tank

Additional - 370 US gallons tanks under each wing attached to the outer pylon

Total fuel load - 3334 US gallons (up to block 40) or 3195 US gallons (from block 41 on)

Performance

Maximum speed – 1,430 mph at 36,000 ft (Mach 2.21) 914 mph at sea level (Mach 1.19)

Cruising speed – 585 mph

Landing speed – 158 mph Initial climb rate – 61,400 fpm

Service ceiling – 62,250 ft Combat ceiling – 59,600 ft

Combat range - 595 miles Maximum range - 1885 miles with maximum external fuel Weights

Empty - 29,535 lbs Gross - 40,562 lbs Combat - 38,019 lbs Take off - 61,651 lbs

Dimensions

Wingspan - 38 ft 5 in Wing area - 530 sq ft Length - 63 ft 0 in Height - 16 ft 6 in

Armament

(1) 20-mm M61A1 cannon with 639 rounds in an under-nose gondola

(4) AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-recessed slots in the fuselage belly.

(2) to (4) AIM-9 Sidewinder infra-red homing air-to-air missiles carried under the wings on the inboard pylons.

Total offensive load of up to 16,000 pounds could be carried on the centerline and four under- wing hard-points.
