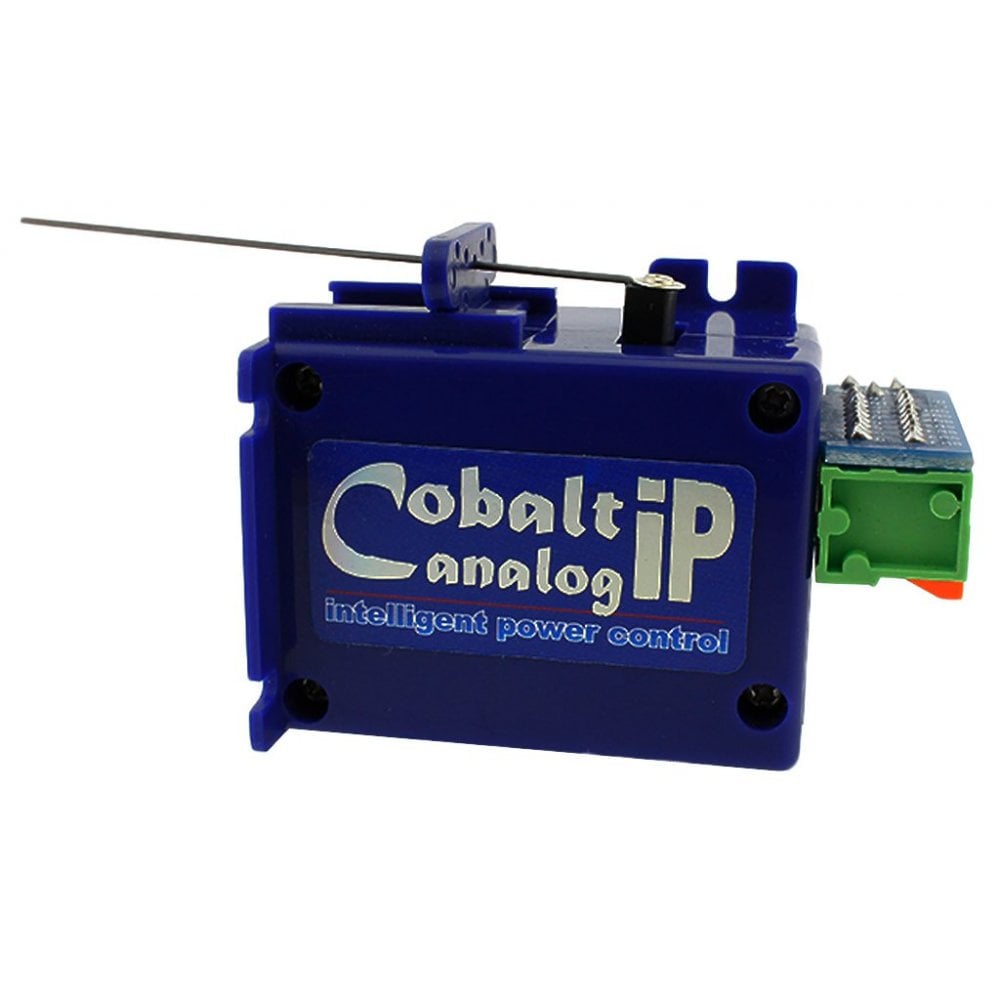

DCC Concepts Cobalt iP Analog Turnout Motor (Single)

DCC Concepts - Cobalt iP Analog Turnout Motor (Single)

Includes:

- Analogue Motor

- Suitable for most gauges of track from N up to Gauge 1

- Self tapping screws included

- Double sided adhesive sticker for attaching motor to the baseboard

- Template to position Motor

- Designed to work with 9 - 12 Volts regulated power (Can work with 7 - 23 volts acceptably)

( For DCC control we strongly recommend that you use our ADiA decoders to add additional functionality not available from other brands.)

- Cobalt-IP “Intelligent Power” Analog motors are switched with reversing DC power, the LEDs for control panel indication can simply be put in-line with power leads! You can then use all the switching for other layout needs.

- The Cobalt iP is supplied with the throw bar already centred for easy installation and it has three “break before make” changeover switches

The switches include:

  - One is a low power SPDT switch linked to the Cobalt iP drive power directly to allow easy connection of low current lighting (for example panels or signals) or for linking to your computer or system control to report turnout position.

- The other two are super high power SPDT switches suitable for up to 5 amps continuous power handling and so are usable for frog polarity, interlocking or many similar applications.

- Dimensions:

- Width 28.5mm (67mm over the mounting wings)

- Depth 40mm (48mm over the mounting wings)

- Height 44mm (67mm over the connector)

- Lifetime Warranty
