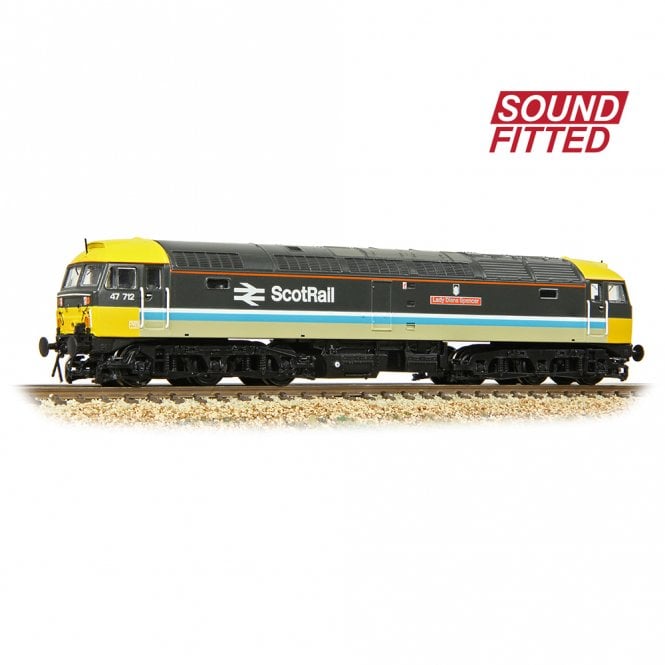

Graham Farish Class 47/7 47712 'Lady Diana Spencer' BR ScotRail (SF) (N)

Class 47/7 47712 'Lady Diana Spencer' BR ScotRail

The Class 47 was British Railways’ most prolific class of main-line diesel locomotive and so it’s no surprise that high fidelity models of these ever-popular machines are available in N Scale as part of the flagship Graham Farish range. Such was their success that Class 47s went through various upgrade and refurbishment programmes during their careers, to extend their lives or ready them for new services, and the Class 47/7 sub-class is just one example – these locomotives being fitted with extended range fuel tanks and cab-front jumper cables to work push-pull trains in Scotland. No. 47712 ‘Lady Diana Spencer’ was one of the first twelve locomotives converted to a 47/7, having entered works as Class 47/4 No. 47505, and is modelled in the striking BR ScotRail livery with bold grey, white and blue bodyside bands and large yellow ends and cab rooves. The real locomotive survives in preservation today, and has recently been returned to service on the main line, in much the same 1980s condition as depicted by our model.

‘Lady Diana Spencer’ takes full advantage to the recent upgrades that have benefited the Graham Farish Class 47, namely the technical advancements which see the model boasting a Next18 DCC decoder interface, pre-fitted speaker, cab lighting (when used on DCC) and independent control of the directional lights at each end.

Features:

• Pristine BR ScotRail livery
• Running No. 47712
• Named ‘Lady Diana Spencer’
• SOUND FITTED – Fitted with a ESU Loksound V5DCC Sound Decoder
• Length 139mm (over couplings)
• Coreless, twin shaft motor with two flywheels providing drive to both bogies
• All axle drive
• Electrical pickup from eight wheels
• Diecast metal chassis block
• Gearing arranged for prototypical running speeds and haulage capabilities
• Bogie-mounted coupling pockets to NEM355 standards at each end
• Designed to operate on curves of second radius (263.5mm) or greater
• Bogies constructed from multiple components featuring full relief detail
• Separately applied detail parts, including lamp irons, cab handrails and roof aerial (where applicable)
• Separately fitted battery box/water/fuel tank assembly
• Cab Interior Detailing
• Each model supplied with a full set of model-specific bufferbeam pipework and accessory parts
• Directional lighting, switchable on/off at either end on DCC or Analogue control
• Cab lighting, switchable on/off (when used on DCC only)
• Speaker installed in all models for optimum sound reproduction

Details Specific to this Model:

• Plated Headcode Panels with Sealed Beam Marker Lights at No. 2 End
• Cab-Front-mounted ETH Equipment
• Scottish Jumper Cables
• Single Arm Windscreen Wipers
• High Intensity Headlight
• Round Buffers
• Full Cab Roof Vents
• Serck Radiator Grilles
• Smooth Exhaust Panels
• Plated Clayton Roof Boiler Port
• Water Tanks Removed
• Later Extended Range Fuel Tanks
• NRN Aerials
• Plated Bogie-mounted Cab Steps

- Era 8

- N Scale

CLASS 47 HISTORY

Towards the end of the 1950s, British Railways began planning a new fleet of diesel locomotives and after investigating several prototypes, BR decided to place an order with Brush Engineering for 20 locomotives during February 1961. The resulting design became the iconic Brush Type 4 Diesel locomotive, a practical, versatile design with a very distinctive cab. Powered with a Sulzer engine and initially rated at 2,750hp, the locomotive could achieve a top speed of 75mph with a tractive effort of 55,000lb. Building commenced in January 1962 and the first locomotive No. D1500 appeared in late September of the same year with test runs on the London Midland Region and Western Region. The design was a success and BR went on to order a total of 512 with continuous production through to early 1967, forming the largest single class of main-line diesel locomotives in the UK.

During this time and subsequent years, several variations appeared with an increase in speed and tractive effort to 95mph and 62,000lb respectively. Originally fitted with four character train reporting head-codes, these changed to marker lights, with the addition of high intensity lights and roof aerials in the late 1980s. Other variations involved the fitting of different types of steam heating boiler for early BR coaching stock, later replaced with electric train heating for use with modern rolling stock. The numbering system started with four figures but changed to five with the introduction of the TOPS coding system which saw the locomotives classified as Class 47 Diesels with variations such as 47/0, 47/2, 47/3, 47/4 and 47/7. By the end of the 1990s, half of the Class 47 fleet had been withdrawn or scrapped, 33 have been converted into Class 57 locomotives and several have been preserved, including the original No. D1500, now numbered 47401.
