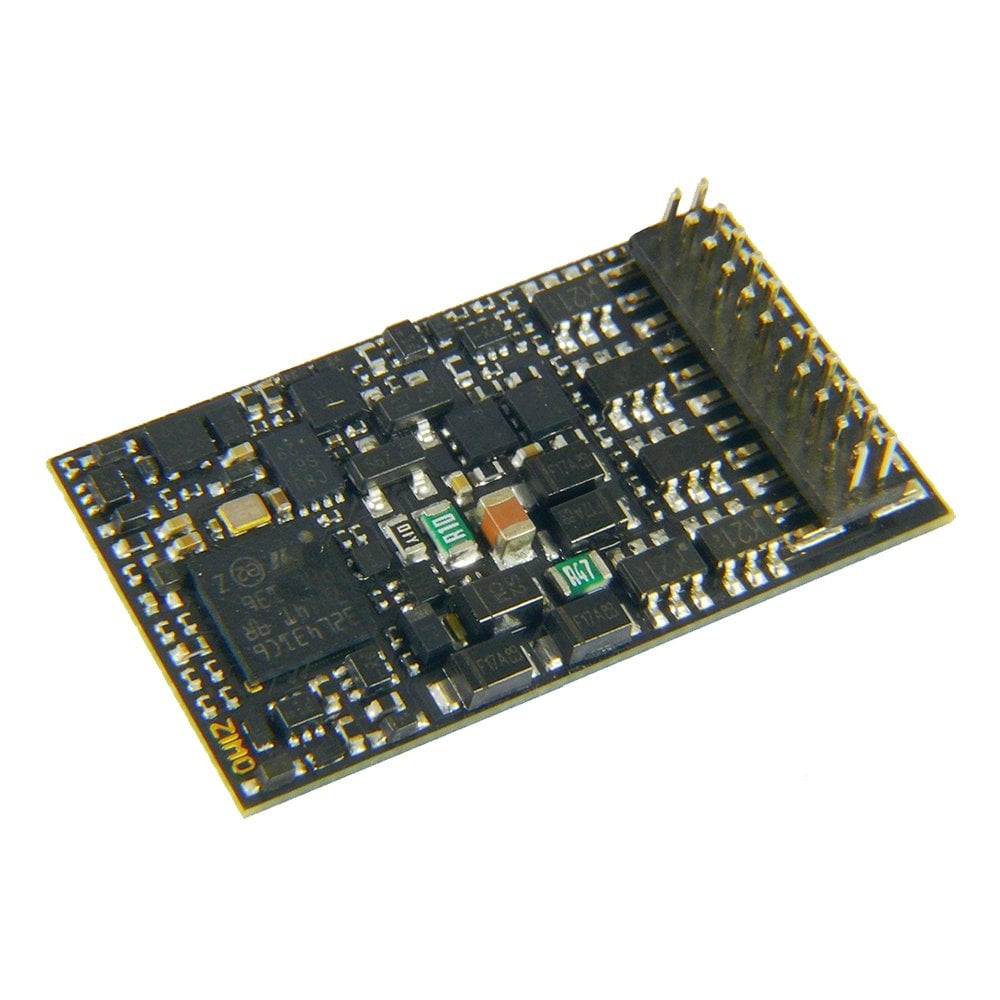

Bachmann Plux22 DCC Loco-Decoder (with Brake Button function) (36-570B)

Plux22 DCC Loco-Decoder (with Brake Button function)

A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket.

(This decoder replaces item Nos. 36-570 and 36-570A and can be used in any model for which item Nos. 36-570 or 36-570A are recommended)

Includes:

- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function

- 10 powered function outputs (+2 servo or SUSI or logic level outputs)

- 1.2A continuous load

- Suitable for models equipped with DC motors (including coreless motors)

- Brake Button function for realistic control of braking (operates on F2)

Operating Modes

- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function

- 14, 28 and 128 speed steps

- Short and Long addresses

Motor Control Features

- Suitable for models equipped with DC motors (including coreless motors)

- 1.2A continuous load

- Variable pulse width frequency motor regulation (up to 40kHz)

- Motor output overload protection; Back EMF (de-selectable)

- Function Outputs

- 10 powered-function outputs with overload protection

- 800mA load per output

- 800mA total load of all function outputs

- 2 additional servo or SUSI or logic level outputs

- Shunting speed and momentum key selectable

Dimensions

- 30mm x 15.3mm x 2.2mm

Default Address

- Address 3

Programming

- DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

- RailCom® Feedback system

- Capacitor connections

- Upgradable firmware
